2 Door – 4′ | 2 Door – 5′ | 2 Door – 6′ | 3 Door – 7′ | 3 Door – 8′ | |
---|---|---|---|---|---|
MODEL | BS2DCF4/Z | BS2DCF5/Z | BS2DCF6/Z | BS3D2C1F7/Z | BS3D2C1F8/Z |
Temperature°C (celsius) – Chiller – Freezer |
+1 to +6 -20 to -14 |
+1 to +6 -20 to -14 |
+1 to +6 -20 to -14 |
+1 to +6 -20 to -14 |
+1 to +6 -20 to -14 |
External Dimension (mm) | 1200 x 760 x 840 | 1500 x 760 x 840 | 1800 x 760 x 840 | 2100 x 760 x 840 | 2400 x 760 x 840 |
Gross Volume (Litres) – (Left) Freezer – (Right) Chiller |
120 120 |
156 156 |
213 213 |
215 368 |
251 441 |
Voltage/Frequency (V/ Hz) | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz |
220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | |
Cooling Capacity (W) | 362 | 415 | 415 | 680 | 680 |
Wattage (W) | 371 – 409 | 418 – 462 | 456 – 504 | 462 – 510 | 474 – 522 |
Ampere(A) | 2.5 – 2.7 | 2.8 – 3.2 | 3.0 – 3.4 | 3.1 – 3.5 | 3.3 – 3.7 |
Refrigerant | R404a | R404a | R404a | R404a | R404a |
Defrost System | Electric Heater | Electric Heater | Electric Heater | Electric Heater | Electric Heater |
Weight (kg) | 88 | 107 | 119 | 141 | 151 |
Unit For 20ft Container | 22 | 20 | 14 | 14 | 8 |
Unit For 40ft Container | 46 | 42 | 28 | 28 | 16 |

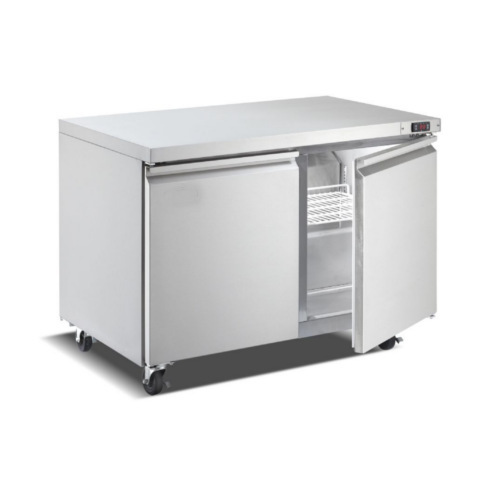

Undercounter Freezer/ Refrigerator
- High-density Cyclo-isopentane Polyurethane insulated body saves energy.
- Insulated partition between left freezer and right chiller compartment ensures temperature integrity of each product zone.
- Refrigeration system protected from corrosion by urethane-treated evaporator coil.
- Effective counter – balanced weight system self-closing door provides smooth, even, positive closure.
